Chapter 3. Process Management

This chapter introduces the concept of the process. The process management is a crucial part of any operating system kernel, including Linux.

The Process

A process is a program (object code stored on some media) in the midst of execution.

Besides the executing program code (text section in Unix), processes also include a set of resources:

Threads of execution

Threads of execution, often shortened to threads, are the objects of activity within the process.

Each thread includes:

The kernel schedules individual threads, not processes. Linux does not differentiate between threads and processes. To Linux, a thread is just a special kind of process.

Virtualized processor and virtual memory

On modern operating systems, processes provide two virtualizations: a virtualized processor and virtual memory.

Threads share the virtual memory abstraction, whereas each receives its own virtualized processor.

Life of a process

A process is an active program and related resources:

fork, exec, exit and wait

In Linux, the fork() system call creates a new process by duplicating an existing one.

The exec() family of function calls creates a new address space and loads a new program into the newborn child immediately after a fork. In contemporary Linux kernels, fork() is actually implemented via the clone() system call, which is discussed in a following section.

The exit() system call terminates the process and frees all its resources. A parent process can inquire about the status of a terminated child via the wait4() system call. A process can wait for the termination of a specific process. When a process exits, it is placed into a special zombie state that represents terminated processes until the parent calls wait() or waitpid(). The kernel implements the wait4() system call. Linux systems, via the C library, typically provide the wait(), waitpid(), wait3(), and wait4() functions.

Process Descriptor and the Task Structure

Another name for a process is a task. The Linux kernel internally refers to processes as tasks. In this book, the terms are used interchangeably, though "task" generally refers to a process from the kernel's point of view.

The kernel stores the list of processes in a circular doubly linked list called the task list.

A process descriptor of the type struct task_struct (defined in <linux/sched.h>) is an element in the task list. It contains all the information about a specific process.

The task_struct is a relatively large data structure, at around 1.7 kilobytes on a 32-bit machine. The process descriptor contains the data that describes the executing program: open files, the process's address space, pending signals, the process's state, etc. See the figure below.

Figure 3.1 The process descriptor and task list.

Allocating the Process Descriptor

The task_struct structure is allocated via the slab allocator to provide object reuse and cache coloring (see Chapter 12). The structure struct thread_info lives at the bottom of the stack (for stacks that grow down) and at the top of the stack (for stacks that grow up)

Figure 3.2 The process descriptor and kernel stack.

Errata: "struct thread_struct" should read "struct thread_info"

The thread_info structure is defined on x86 in <asm/thread_info.h> (see below code). Each task's thread_info structure is allocated at the end of its stack. The task element of the structure is a pointer to the task's actual task_struct:

struct thread_info {
    struct task_struct *task;
    struct exec_domain *exec_domain;
    __u32 flags;
    __u32 status;
    __u32 cpu;
    int preempt_count;
    mm_segment_t addr_limit;
    struct restart_block restart_block;
    void *sysenter_return;
    int uaccess_err;
};

Storing the Process Descriptor

The process identification (PID) is numerical value, represented by the opaque type pid_t (typically int), for the system to identify processes. The default maximum value is only 32,768 (that of a short int), although the value optionally can be increased as high as four million (this is controlled in <linux/threads.h>). The kernel stores this value as pid inside each process descriptor. [p26]

Large servers may require many more than 32,768 (maximum value) processes. The lower the value, the sooner the values will wrap around, destroying the useful notion that higher values indicate later-run processes than lower values. The administrator may increase the maximum value via /proc/sys/kernel/pid_max.

Inside the kernel, tasks are typically referenced directly by a pointer to their task_struct structure. In fact, most kernel code that deals with processes works directly with struct task_struct. Consequently, it is useful to be able to quickly look up the process descriptor of the currently executing task, which is done via the current macro. This macro must be independently implemented by each architecture:

The current_thread_info() function

On x86, current is calculated by masking out the 13 least-significant bits of the stack pointer to obtain the thread_info structure. This is done by the current_thread_info() function (arch/x86/include/asm/thread_info.h#L184). The assembly is shown here:

movl $-8192, %eax
andl %esp, %eax

This assumes that the stack size is 8KB. When 4KB stacks are enabled, 4096 is used in lieu of 8192.

current dereferences the task member of thread_info to return the task_struct:

current_thread_info()->task;

Process State

The state field of the process descriptor describes the current condition of the process.

Figure 3.3 Flow chart of process states.

Each process on the system is in exactly one of five different states. This value is represented by one of five flags:

Manipulating the Current Process State

Kernel code often needs to change a process's state. The preferred mechanism is using:

set_task_state(task, state); /* set task ‘task’ to state ‘state’ */

This function sets the given task to the given state. If applicable, it also provides a memory barrier to force ordering on other processors (only needed on SMP systems). Otherwise, it is equivalent to:

task->state = state;

The method set_current_state(state) is synonymous to set_task_state(current, state). See <linux/sched.h> for the implementation of these and related functions.

Process Context

The program code is read in from an executable file and executed within the program's address space.

Upon exiting the kernel, the process resumes execution in user-space, unless a higher-priority process has become runnable in the interim, in which case the scheduler is invoked to select the higher priority process.

A process can begin executing in kernel-space only through one of the following well-defined interfaces:

The Process Family Tree

All processes are descendants of the init process (PID 1). The kernel starts init in the last step of the boot process. The init process reads the system initscripts and executes more programs, eventually completing the boot process.


[UTLK p87-88]

The pointers (next and prev) in a list_head field store the addresses of other list_head fields rather than the addresses of the whole data structures in which the list_head structure is included. See figure below:

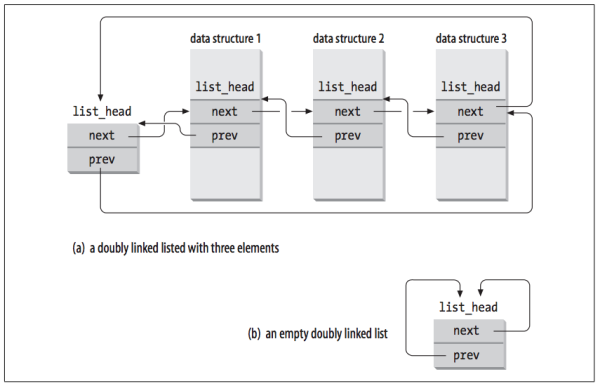

Figure 3-3. Doubly linked lists built with list_head data structures


The relationship between processes is stored in the process descriptor.

Each task_struct (include/linux/sched.h#L1170) has:

To obtain the process descriptor of a given process's parent:

struct task_struct *my_parent = current->parent;

To iterate over a process's children:

struct task_struct *task;
struct list_head *list;

list_for_each(list, &current->children) {
    task = list_entry(list, struct task_struct, sibling);
    /* task now points to one of current's children */
}

The init task's process descriptor is statically allocated as init_task. The following code will always succeed:

struct task_struct *task;

for (task = current; task != &init_task; task = task->parent)
;
/* task now points to init */

You can follow the process hierarchy from any one process in the system to any other. Oftentimes, it is desirable simply to iterate over all processes in the system. This is easy because the task list is a circular, doubly linked list.

To obtain the next task in the list, given any valid task, use:

list_entry(task->tasks.next, struct task_struct, tasks)

To obtain the previous task works the same way:

list_entry(task->tasks.prev, struct task_struct, tasks)

These two routines are provided by the macros next_task(task) and prev_task(task). (See Doubts and Solutions)

The macro for_each_process(task) iterates over the entire task list. On each iteration, task points to the next task in the list:

struct task_struct *task;

for_each_process(task) {
    /* this pointlessly prints the name and PID of each task */
    printk("%s[%d]\n", task->comm, task->pid);
}

It is expensive to iterate over every task in a system with many processes; code should have good reason (and no alternative) before doing so.

Process Creation

Most operating systems implement a spawn mechanism to create a new process in a new address space, read in an executable, and begin executing it. Unix separates these steps into two distinct functions: fork() and exec().

Copy-on-Write

If upon fork() all resources owned by the parent are duplicated and the copy is given to the child, it is naive and inefficient in that it copies much data that might otherwise be shared. Worse still, if the new process were to immediately execute a new image, all that copying would go to waste.

In Linux, fork() is implemented through the use of copy-on-write pages.

Copy-on-write (COW) can delay or prevent copying data. Rather than duplicating the process address space, the parent and the child can share a single copy.

The only overhead incurred by fork() is the duplication of the parent's page tables and the creation of a unique process descriptor for the child. In the common case that a process executes a new executable image immediately after forking, this optimization prevents the wasted copying of large amounts of data (with the address space, easily tens of megabytes). This is an important optimization because the Unix philosophy encourages quick process execution.

Forking

Linux implements fork() via the clone() system call which takes a series of flags that specify which resources the parent and child process should share.

The bulk of the work in forking is handled by do_fork(), which is defined in kernel/fork.c. do_fork() function calls copy_process() and then starts the process running.

The interesting work is done by copy_process():

  1. It calls dup_task_struct() that creates following for the new process with identical values to those of the current task:
    • Kernel stack
    • thread_info structure
    • task_struct
    • (At this point, the child and parent process descriptors are identical)
  2. It then checks that the new child will not exceed the resource limits on the number of processes for the current user.
  3. Various members of the process descriptor are cleared or set to initial values, to differentiate the child from its parent.
    • Members of the process descriptor not inherited are primarily statistically information.
    • The bulk of the values in task_struct remain unchanged.
  4. The child's state is set to TASK_UNINTERRUPTIBLE to ensure that it does not yet run.
  5. It calls copy_flags() to update the flags member of the task_struct (per process flags: include/linux/sched.h#L1693).
    • The PF_SUPERPRIV flag, which denotes whether a task used superuser privileges, is cleared
    • The PF_FORKNOEXEC flag, which denotes a process that has not called exec(), is set.
  6. It calls alloc_pid() to assign an available PID to the new task.
  7. Depending on the flags passed to clone(), copy_process() either duplicates or shares:
    • Open files
    • Filesystem information
    • Signal handlers
    • Process address space
    • Namespace
    • (These resources are typically shared between threads in a given process; otherwise they are unique and thus copied here)
  8. Finally, copy_process() cleans up and returns to the caller a pointer to the new child.

Back in do_fork(), if copy_process() returns successfully, the new child is woken up and run.

Deliberately, the kernel runs the child process first. In the case of the child calling exec() immediately, this eliminates any copy-on-write overhead that would occur if the parent ran first and began writing to the address space.

vfork()

The vfork() system call has the same effect as fork(), except that the page table entries of the parent process are not copied. The child executes as the sole thread in the parent's address space, and the parent is blocked until the child either calls exec() or exits. The child is not allowed to write to the address space. [p33]

Today, with copy-on-write and child-runs-first semantics, the only benefit to vfork() is not copying the parent page tables entries. [p33]

The vfork() system call is implemented via a special flag to the clone() system call:

  1. In copy_process(), the task_struct member vfork_done is set to NULL.
  2. In do_fork(), if the special flag was given, vfork_done is pointed at a specific address.
  3. After the child is first run, the parent (instead of returning) waits for the child to signal it through the vfork_done pointer.
  4. In the mm_release() function, which is used when a task exits a memory address space, vfork_done is checked to see whether it is NULL. If it is not, the parent is signaled.
  5. Back in do_fork(), the parent wakes up and returns.

If this all goes as planned, the child is now executing in a new address space, and the parent is again executing in its original address space. The overhead is lower, but the implementation is not pretty.

The Linux Implementation of Threads

Linux has a unique implementation of threads:

This approach to threads contrasts greatly with operating systems such as Microsoft Windows or Sun Solaris, which have explicit kernel support for threads (and sometimes call threads lightweight processes). [p34]

Creating Threads

Threads are created the same as normal tasks, with the exception that the clone() system call is passed flags corresponding to the specific resources to be shared:

clone(CLONE_VM | CLONE_FS | CLONE_FILES | CLONE_SIGHAND, 0);

The above code is identical to fork() except that the address space (CLONE_VM), filesystem resources (CLONE_FS), file descriptors (CLONE_FILES), and signal handlers (CLONE_SIGHAND) are shared.

fork() can be implemented as:

clone(SIGCHLD, 0);

vfork() is implemented as:

clone(CLONE_VFORK | CLONE_VM | SIGCHLD, 0);

The flags, which are defined in <linux/sched.h> (include/linux/sched.h#L5), to clone() specify the behavior of the new process and detail what resources the parent and child will share.

Flag Meaning
CLONE_FILES Parent and child share open files.
CLONE_FS Parent and child share filesystem information.
CLONE_IDLETASK Set PID to zero (used only by the idle tasks).
CLONE_NEWNS Create a new namespace for the child.
CLONE_PARENT Child is to have same parent as its parent.
CLONE_PTRACE Continue tracing child.
CLONE_SETTID Write the TID back to user-space.
CLONE_SETTLS Create a new TLS (thread-local storage) for the child.
CLONE_SIGHAND Parent and child share signal handlers and blocked signals.
CLONE_SYSVSEM Parent and child share System V SEM_UNDO semantics.
CLONE_THREAD Parent and child are in the same thread group.
CLONE_VFORK vfork() was used and the parent will sleep until the child wakes it.
CLONE_UNTRACED Do not let the tracing process force CLONE_PTRACE on the child.
CLONE_STOP Start process in the TASK_STOPPED state.
CLONE_CHILD_CLEARTID Clear the TID in the child.
CLONE_CHILD_SETTID Set the TID in the child.
CLONE_PARENT_SETTID Set the TID in the parent.
CLONE_VM Parent and child share address space.

Kernel Threads

Kernel threads are standard processes that exist solely in kernel-space. They are useful for the kernel to perform some operations in the background.

Difference from normal threads:

Similarity with normal threads:

Linux delegates several tasks to kernel threads, most notably the flush tasks and the ksoftirqd task. Use ps -ef command to see them.

The interfaces of kernel threads defined in <linux/kthread.h> (include/linux/kthread.h)

kthread_create() spawns a new kernel thread from an existing one:

struct task_struct *kthread_create(int (*threadfn)(void *data),
                                   void *data,
                                   const char namefmt[],
                                   ...)

The new task is created via the clone() system call by the kthread kernel process:

A process can be created and made runnable with a single function, kthread_run():

struct task_struct *kthread_run(int (*threadfn)(void *data),
                                void *data,
                                const char namefmt[],
                                ...)

This routine (kthread_run()), implemented as a macro, simply calls both kthread_create() and wake_up_process():

#define kthread_run(threadfn, data, namefmt, ...)                 \
({                                                                \
    struct task_struct *k;                                        \
                                                                  \
    k = kthread_create(threadfn, data, namefmt, ## __VA_ARGS__);  \
    if (!IS_ERR(k))                                               \
        wake_up_process(k);                                       \
    k;                                                            \
})

When started, a kernel thread continues to exist until it calls do_exit() or another part of the kernel calls kthread_stop(), passing in the address of the task_struct structure returned by kthread_create():

int kthread_stop(struct task_struct *k)

Process Termination

When a process terminates, the kernel releases the resources owned by the process and notifies the child's parent of its demise.

Self-induced process termination occurs when the process calls the exit() system call, which is either:

Involuntary process termination occurs when the process receives a signal or exception it cannot handle or ignore.

Regardless of how a process terminates, the bulk of the work is handled by do_exit(), defined in kernel/exit.c (kernel/exit.c#L900), which does the following:

  1. It sets the PF_EXITING flag in the flags member of the task_struct.
  2. It calls del_timer_sync() to remove any kernel timers. Upon return, it is guaranteed that no timer is queued and that no timer handler is running.
  3. If BSD process accounting is enabled, do_exit() calls acct_update_integrals() to write out accounting information.
  4. It calls exit_mm() to release the mm_struct held by this process. If no other process is using this address space (if the address space is not shared) the kernel then destroys it.
  5. It calls exit_sem(). If the process is queued waiting for an IPC semaphore, it is dequeued here.
  6. It then calls exit_files() and exit_fs() to decrement the usage count of objects related to file descriptors and filesystem data, respectively.
  7. It sets the task's exit code (stored in the exit_code member of the task_struct) to that provided by exit() or whatever kernel mechanism forced the termination. The exit code is stored here for optional retrieval by the parent.
  8. It send signals and reparents children:
    • Calls exit_notify() to send signals to the task's parent
    • Reparents any of the task's children to another thread in their thread group or the init process
    • Sets the task's exit state (stored in exit_state in the task_struct structure) to EXIT_ZOMBIE.
  9. It calls schedule() to switch to a new process.
    • Because the process is now not schedulable, this is the last code the task will ever execute. do_exit() never returns.

At this point:

Removing the Process Descriptor

After do_exit() completes, the process descriptor for the terminated process still exists, but the process is a zombie and is unable to run.

Cleaning up after a process and removing its process descriptor are separate steps. This enables the system to obtain information about a child process after it has terminated.

The terminated child's task_struct is deallocated after any of the following:

The wait() family of functions are implemented via a system call wait4().

The standard behavior is to suspend execution of the calling task until one of its children exits, at which time the function returns with the PID of the exited child. On return, a pointer (as an argument to a wait() function) holds the exit code of the terminated child. [p38]

release_task() is invoked to finally deallocate the process descriptor:

  1. It calls __exit_signal(), which calls __unhash_process(), which in turns calls detach_pid() to remove the process from the pidhash and remove the process from the task list.
  2. __exit_signal() releases any remaining resources used by the now dead process and finalizes statistics and bookkeeping.
  3. If the task was the last member of a thread group, and the leader is a zombie, then release_task() notifies the zombie leader's parent.
  4. release_task() calls put_task_struct() to free the pages containing the process's kernel stack and thread_info structure and deallocate the slab cache containing the task_struct.

At this point, the process descriptor and all resources belonging solely to the process have been freed.

The Dilemma of the Parentless Task

If a parent exits before its children, any of its child tasks must be reparented to a new process, otherwise parentless terminated processes would forever remain zombies, wasting system memory.

The solution is to reparent a task's children on exit to another process in the current thread group, or (if that fails) the init process.

do_exit() calls exit_notify(), which calls forget_original_parent(), which calls find_new_reaper() to perform the reparenting:

static struct task_struct *find_new_reaper(struct task_struct *father)
{
    struct pid_namespace *pid_ns = task_active_pid_ns(father);
    struct task_struct *thread;

    thread = father;
    while_each_thread(father, thread) {
      if (thread->flags & PF_EXITING)
          continue;
      if (unlikely(pid_ns->child_reaper == father))
          pid_ns->child_reaper = thread;
      return thread;
    }

    if (unlikely(pid_ns->child_reaper == father)) {
        write_unlock_irq(&tasklist_lock);
        if (unlikely(pid_ns == &init_pid_ns))
        panic("Attempted to kill init!");

        zap_pid_ns_processes(pid_ns);
        write_lock_irq(&tasklist_lock);

        /*
        * We can not clear ->child_reaper or leave it alone.
        * There may by stealth EXIT_DEAD tasks on ->children,
        * forget_original_parent() must move them somewhere.
        */
        pid_ns->child_reaper = init_pid_ns.child_reaper;
    }

    return pid_ns->child_reaper;
}

The above code attempts to find and return another task in the process's thread group. If another task is not in the thread group, it finds and returns the init process.

After a suitable new parent for the children is found, each child needs to be located and reparented to reaper:

reaper = find_new_reaper(father);
list_for_each_entry_safe(p, n, &father->children, sibling) {
    p->real_parent = reaper;
    if (p->parent == father) {
        BUG_ON(p->ptrace);
        p->parent = p->real_parent;
    }
    reparent_thread(p, father);
}

ptrace_exit_finish() is then called to do the same reparenting but to a list of ptraced children:

void exit_ptrace(struct task_struct *tracer)
{
    struct task_struct *p, *n;
    LIST_HEAD(ptrace_dead);

    write_lock_irq(&tasklist_lock);
    list_for_each_entry_safe(p, n, &tracer->ptraced, ptrace_entry) {
        if (__ptrace_detach(tracer, p))
        list_add(&p->ptrace_entry, &ptrace_dead);
    }
    write_unlock_irq(&tasklist_lock);

    BUG_ON(!list_empty(&tracer->ptraced));

    list_for_each_entry_safe(p, n, &ptrace_dead, ptrace_entry) {
    list_del_init(&p->ptrace_entry);
    release_task(p);
    }
}

When a task is ptraced, it is temporarily reparented to the debugging process. When the task's parent exits, however, it must be reparented along with its other siblings. In previous kernels, this resulted in a loop over every process in the system looking for children. The solution is simply to keep a separate list of a process's children being ptraced, reducing the search for one's children from every process to just two relatively small lists

After the process are successfully reparented, there is no risk of stray zombie processes. The init process routinely calls wait() on its children, cleaning up any zombies assigned to it.


Doubts and Solutions

Verbatim

These two routines are provided by the macros next_task(task) and prev_task(task), respectively.

I didn't find any relevant appearance for prev_task macro in the Linux 2.6.34.7 source code.
